Product:CAT5E Bulk Lan Cable UTP Solid Network Ethernet Lan Cable CAT5

Model No.:900202

Description:CAT5E Bulk Lan Cable UTP Solid Network Ethernet Lan Cable CAT5 without any connectors is a perfect solution for

networking your home and office. Gigabit network ready will be providing superior performance for high bandwidth applications.

Specifications:

  1. Conductor: 100% Pure copper
  2. Solid wire 24AWG
  3. Jacket Color: Gray
  4. Length: 1000ft (305m)
  5. CAT5E UTP (Category 5 Enhanced, Unshielded Twisted Pair)
  6. Bandwidth: 100MHz
  7. Full speed: 1200Mbps
  8. Exceed the TIA performance requirement against CAT5E cable
  9. Indoor Type
  10. Temperature: -20℃ to +75℃
  11. Standard: UL444
  12. Minimum bending radius: >8D
  13. Application: 100 Base-TX, 100 Base-T4, 100 VG-Anylan, 1000 Base-T (Gigabit), ATM
  14. UL, ROHS 3.0 & REACH (ED:Jan.15.2018) compliantt
  15. Price: click to inquire



Electrical Characteristics
Frequency MHz Impedance ohm Return Loss ≥dB Attenuation ≤dB/100m NEXT ≥dB/100m ELFEXT ≥dB/100m PS NEXT ≥Db/100m PS ELFEXT ≥dB/100m NVP
1 100±15 20.0 2.0 65.3 63.8 62.3 60.8 68%
4 23.3 4.1 56.3 51.7 53.3 48.7
10 25.0 6.5 50.3 43.8 47.3 40.8
16 25.0 8.2 47.3 39.7 44.2 36.7
20 25.0 9.3 44.3 37.7 42.8 34.7
31.25 23.6 11.6 42.9 33.9 39.9 30.9
62.5 21.5 17.0 38.4 27.8 35.4 24.8
100 20.1 22.0 35.3 23.8 32.3 20.8
*155 100±18 18.0 28.1 32.4 20.2 29.4 17.2
*200 18.0 32.4 30.8 18.0 27.8 15.0
*310 100±22 16.7 41.8 27.9 14.2 24.9 11.2
*350 16.3 44.9 27.1 13.1 24.1 10.1
Remarks: values with * are for reference

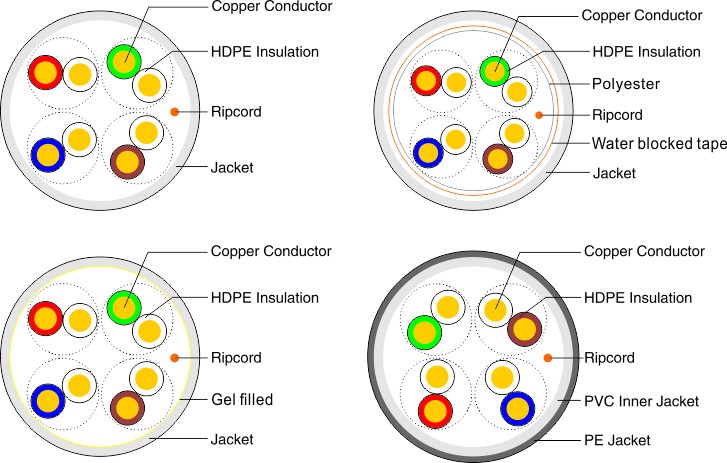

Cable Constructions (CAT5E)
Model No. Construction Conductor Insulation OD No. of Pairs Jacket OD Jacket Type Remark
900202A U/UTP 24 0.89 4 5.1/5.4 PVC/PE/LSZH 100MHz
900202B U/UTP 24 1.01 4 6.0 PE Gel filled 100MHz
900202C U/UTP 24 0.95 4 6.5 PE Water blocked tape 100MHz
900202D U/UTP 24 0.90 4 6.3 PVC+PE 100MHz
900202E U/UTP 24 0.91 4 5.3 PVC+LSZH 350MHz
