2-Post Open Frame Server Rack

2-Post Open Frame Server Rack

Product:2-Post Open Frame Server Rack

Model No.:110313

Description:This 2-Post Open Frame Server Rack is an ideal solution for 19-inch rack mount network applications in those sites which with limited space

Specifications:

  1. Aluminum construction
    Light weight aluminum construction is available, safely supports rack mount equipments and cheaper transportation
  2. Easy assembly
    Self-squaring design combined with numbered mounting positions makes easy and quick installation
  3. Loading capacity
    Maximum static loading ability up to 300kg
  4. Optional material
    SPCC cold rolled steel or light weight aluminum material
  5. Less shipping cost
    Unassembled in one carton, convenient for transportation
  6. Color: RAL9005 and RAL7035
  7. RoHS and REACH Compliant
  8. Price: click to inquire

2-Post Open Frame Server Rack

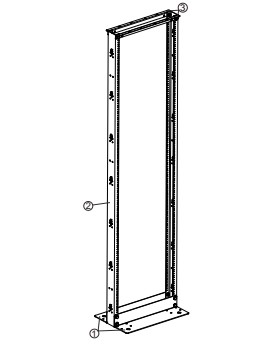

S/N Name Quantity(PCS)
1 Base Bracket 2
2 Post 2
3 Top Bracket 2

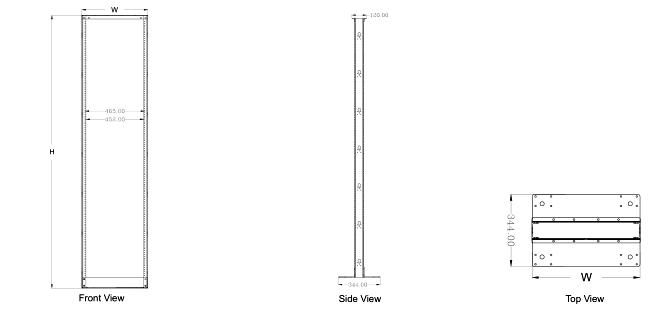

Dimensions:

2-Post Open Frame Server Rack

Model Capacity Dimension(W*D*H mm) CKD Packing Dimension
(W*D*H mm) Volume(CBM)
110313A 25U 515*344*1245 1265*150*120 0.023
110313B 45U 515*344*2134 2155*150*120 0.039
