Movable 2-Post Open Frame Server Rack

NECABLES > Products > Others > Cabinet/Rack > Movable 2-Post Open Frame Server Rack

Product：Movable 2-Post Open Frame Server Rack

Model No.：110305

Description：This Movable 2-Post Open Frame Server Rack is an ideal solution for space constranied or cost conscious 19-inch rack mount network applications

Specifications：

  1. High cablingcapacity
    Many cable entry hole at side of rack
  2. Loading capacity
    Static loading capacity up to 300 kgs
  3. Loading capacity
    Static loading capacity up to 300 kgs
  4. Less shipping costs
    Can be shipped by CKD package(completely knock-down)
  5. Color: RAL9005 and RAL7035
  6. RoHS and REACH Compliant
  7. Price: click to inquire

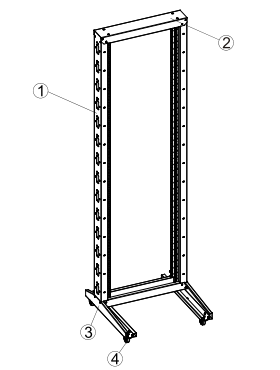

Components：

S/N Name Quantity（pcs）
1 pole 2
2 honrizontal beam 1
3 plinth 2
4 castor(2 with brake) 4

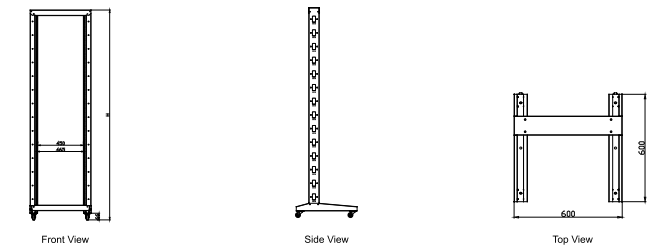

Dimensions：

Model Capacity Dimension(W*D*H mm) CKD Packing Dimension
(W*D*H mm) Volume(CBM)
110305A 22U 600*600*1187 615*250*1130 0.174
110305B 32U 600*600*1631 615*250*1575 0.242
110305C 37U 600*600*1854 615*250*1795 0.276
110305D 42U 600*600*2076 615*250*2020 0.311
110305E 47U 600*600*2298 615*250*2240 0.344
